Affiliation network triads — triad • bitriad

These functions create and operate on triads in affiliation networks. In this context, a triad is the schedule of a subset of three distinct actors.

Usage

make_triad(
  lambda,
  w,
  actor_names = c("p", "q", "r"),
  event_names = if (sum(c(lambda, w)) == 0) c() else as.character(1:sum(c(lambda, w)))
)

is_triad(graph)

triad_class(
  graph,
  actors = V(graph)[V(graph)$type == FALSE],
  as.partition = TRUE,
  format = "list"
)

layout_triad(
  triad = NULL,
  lambda = NULL,
  w = NULL,
  scale = 0.3,
  angdir = -1,
  rot = -pi/2,
  rot_lambda = c(0, 0, 0),
  rot_w = pi/12
)

plot_triad(
  triad = NULL,
  lambda = NULL,
  w = NULL,
  layout = NULL,
  prettify = TRUE,
  cex = 1,
  scale = 0.3,
  angdir = -1,
  rot = -pi/2,
  rot_lambda = c(0, 0, 0),
  rot_w = pi/12,
  actor_names = c("p", "q", "r"),
  event_names = if (sum(c(lambda, w)) == 0) c() else as.character(1:sum(c(lambda, w))),
  xlim = NULL,
  ylim = NULL,
  ...
)

an_triad(...)

is.triad(graph)

triad.class(
  graph,
  actors = V(graph)[V(graph)$type == FALSE],
  as.partition = TRUE,
  format = "list"
)

an.triad(...)

layout.triad(
  triad = NULL,
  lambda = NULL,
  w = NULL,
  scale = 0.3,
  angdir = -1,
  rot = -pi/2,
  rot_lambda = c(0, 0, 0),
  rot_w = pi/12
)

plotTriad(
  triad = NULL,
  lambda = NULL,
  w = NULL,
  layout = NULL,
  prettify = TRUE,
  cex = 1,
  scale = 0.3,
  angdir = -1,
  rot = -pi/2,
  rot_lambda = c(0, 0, 0),
  rot_w = pi/12,
  actor_names = c("p", "q", "r"),
  event_names = if (sum(c(lambda, w)) == 0) c() else as.character(1:sum(c(lambda, w))),
  xlim = NULL,
  ylim = NULL,
  ...
)

Arguments

lambda: A non-negative integer vector of length three indicating the number of events attended by each pair of actors and not by the third (exclusive events).
w: A non-negative integer indicating the number of events attended by all three actors (inclusive events).
actor_names, event_names: Actor and event names (actor names default to "p", "q", and "r"; event names default to positive integers).
graph: An affiliation network, in some cases must be a triad.
actors: A vector of three actor nodes in graph.
as.partition: Whether to sort the exclusive events, versus reporting them in order of the nodes; defaults to TRUE.
format: Character matched to "list" or "vector"; whether to return the triad class as a list of \(\lambda=(x,y,z)\) and \(w\) or as a vector of \(w\), \(x=\lambda_1\), \(y=\lambda_2\), and \(z=\lambda_3\).
triad: An affiliation network with exactly three distinct actors.
scale: A scaling parameter for the entire plot.
angdir: A rotation direction parameter (-1 for clockwise, 1 for counter-clockwise).
rot, rot_lambda, rot_w: Angular orientation parameters for the entire triad, for the exclusive events of two actors, and for the inclusive events of all three actors.
layout: A two-column numeric matrix interpretable as a layout.
prettify: Logical; whether to use prettify_an to adjust the aesthetics of a triad before plotting it.
cex: Node size scaling parameter.
xlim, ylim: Custom bounds on the horizontal and vertical axes.
...: Additional arguments passed to plot.igraph.

Value

An igraph object, a logical value, a matrix of plotting coordinates, or a list of summary parameters lambda and w.

Examples

tr <- make_triad(lambda = c(3,1,1), w = 2)
is_triad(tr)
#> [1] TRUE
triad_class(tr)
#> $lambda
#> [1] 3 1 1
#>
#> $w
#> [1] 2
#>
layout_triad(tr)
#>                [,1]        [,2]
#>  [1,]  6.123234e-17  1.00000000
#>  [2,]  8.660254e-01 -0.50000000
#>  [3,] -8.660254e-01 -0.50000000
#>  [4,]  6.062178e-01  0.35000000
#>  [5,]  1.125833e+00  0.35000000
#>  [6,]  8.660254e-01  0.80000000
#>  [7,] -1.836970e-16 -1.00000000
#>  [8,] -8.660254e-01  0.50000000
#>  [9,]  2.897777e-01  0.07764571
#> [10,] -2.897777e-01 -0.07764571

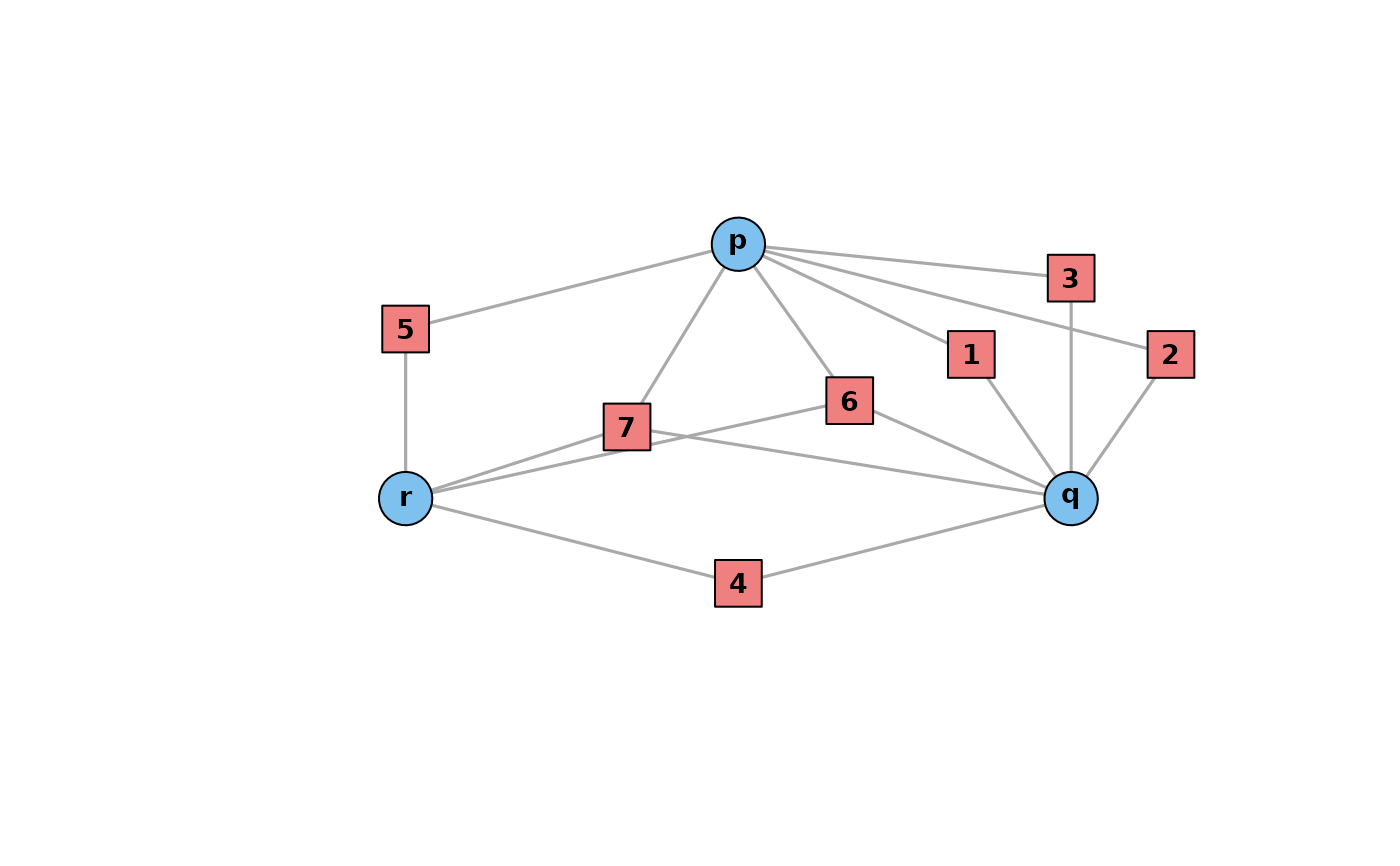

plot_triad(tr)
